Gear/Sprocket, Gear Box, Toroidal Worm Box Roof Former Roll Forming

Gear/Sprocket, Gear Box, Toroidal Worm Box Roof Former Roll Forming ;

Model NO.	Auto CU Purlin
Transmission Method	Gear/Sprocket, Gear Box, Toroidal Worm Box
Thickness	3.0mm
Yield Strength	250MPa
Color	Customized
Transport Package	Container
Origin	Xiamen
HS Code	8455229090
Production Capacity	10sets/Month

ROLL FORMING MACHINE FOR CU PURLIN
ROLL FORMING MACHINE FOR CU PURLIN
Material Specification
Thickness	3.0mm
Size	C120606010,80404010/U4040403,602525,5020*20
Material	GI
Yield strength	250MPa

Machine Components

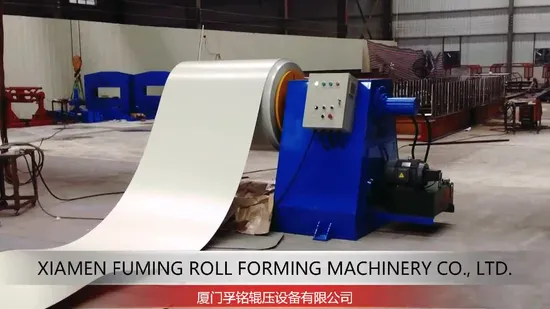

5Ton*600mm Hydraulic Decoiler
Coil inner hole expanding	Hydraulic system, 3KW pump motor
Speed regulating	Frequency inverter, 3KW motor
Expanding type	Taper wedge expanding system
Load capacity	Max.5Tons
Coil inner diameter	510±30mm
Coil outer diameter	Max.1600mm
Coil width	Max.600mm
Stop/start rotation	Automatic stopping device with limited switch to assist
Option	Please refer to Decoiler on home page

63 Tons Punch Press
Servo motor to feed in	1.7KW×1
Stroke	250mm
Punching mould material	Cr12Mov, heat treatment

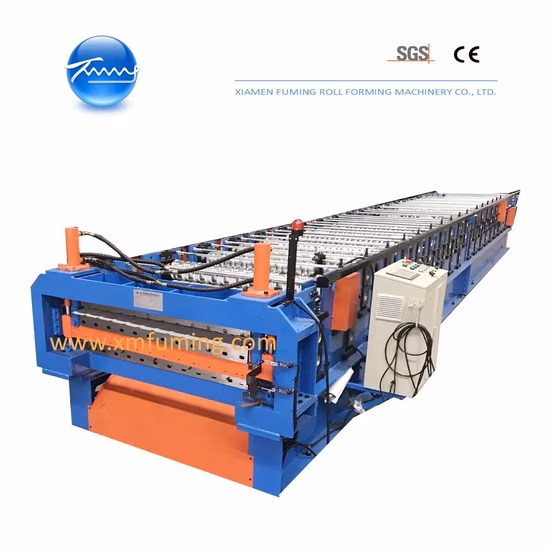

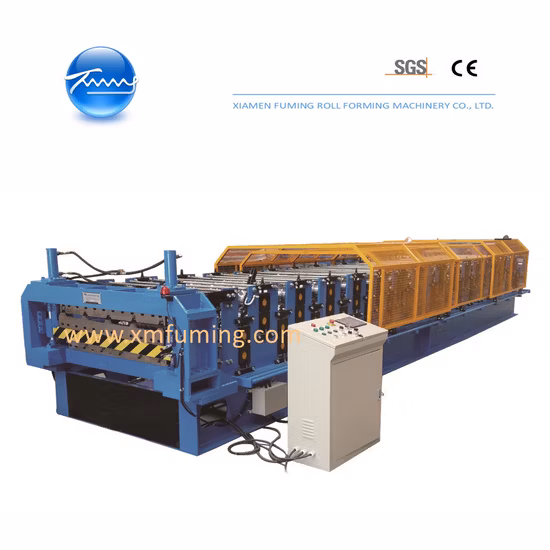

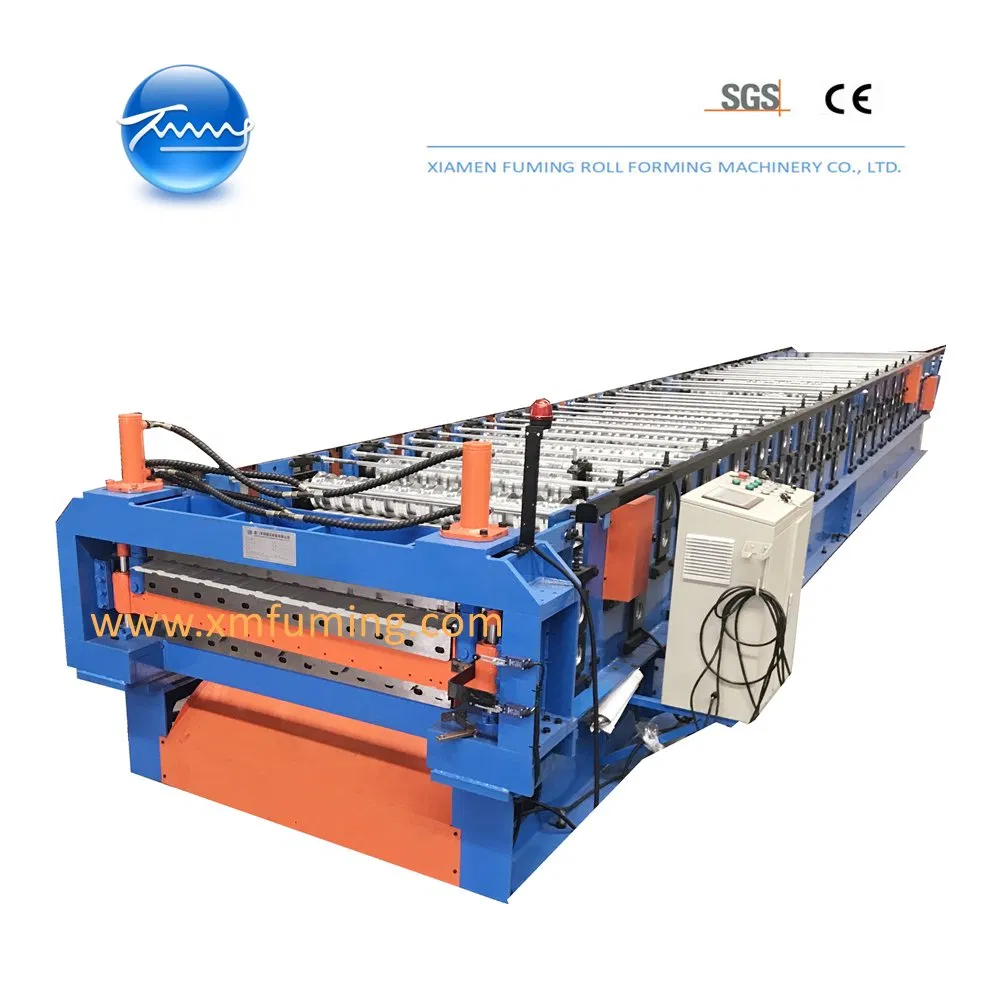

Roll Forming Machine
Driving system	Gear/sprocket
Forming station	16 stages
Roller material	Cr12, heat treatment, HRC58~62
Option for roller material	Cr12Mov
Shafts Diameter	Φ75mm
Servo motor to drive	22KW
Motor for size changing	1.5KW×1+0.75KW×2
Speed	Approx. 15m/min(cutting time is not considered)

Hydraulic Post Cutting Device
Cutting device is movable on the linear rail
Cutting type	Slug breaker
Cutting tool material	Cr12, Heat treatment
Hydraulic station	7.5KW

PLC Control System
Function	Control quantity, punching and cutting length automatically
PLC	Siemens
Touch screen	Siemens
Inverter	Schneider or Delta
Encoder	Omron
Cut-to-length tolerance	≤±2mm
Control Voltage	24V

Product Rack	Un-powered, 3 meters long
