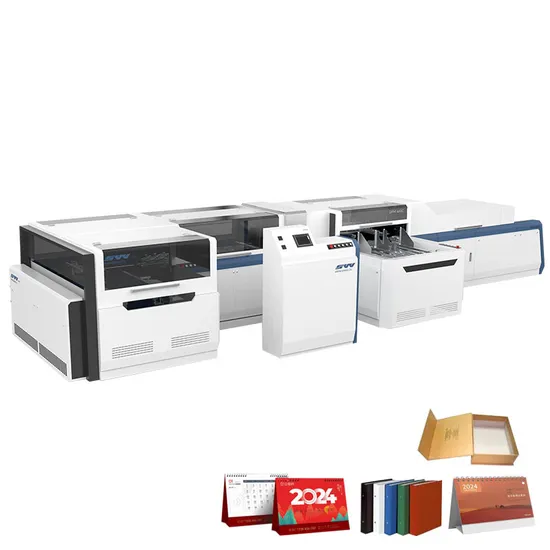

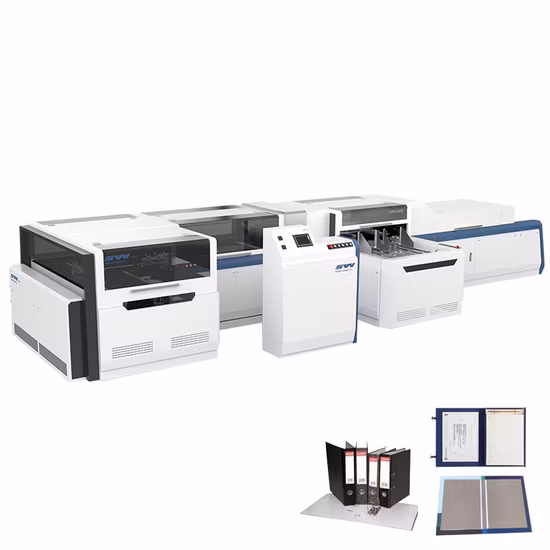

Automatic Case Making Machine Qfm460b/600b

Automatic Case Making Machine Qfm460b/600b

Automatic Case Making Machine QFM460B/600B Case Making Machine Adopts automatic paper feeding system and automatic cardb;
Basic Info.
Model NO. QFM 460-600B
Automatic Grade Automatic
Max Size 600*1000mm
Qfm-600b Case Making Machine
Transport Package Export Stander Wooden Box
Specification 600*1000mm
Trademark XINWEI
Origin Ruian, China
HS Code 8441809000
Production Capacity 200 Set Per Year
Product Description
Automatic Case Making Machine QFM460B/600B

Automatic Case Making Machine Qfm460b/600b


Case Making Machine Adopts automatic paper feeding system and automatic cardboard positioning device;There are features of accurate and quick positioning, and beautiful finished products etc.It is used to make hardcovers, notebook covers, calendars, hanging calendars, files, Irregular covers etc.

Features:

1.The feeder in this machine adopts back-push feeding system, which is controlled pneumatically, and its structure is simple and reasonable.

2.The width between stacker and feeding table is adjusted concentrically in the centre.The operation is very easy without error.

3.New designed copper scraper cooperates with the glue roller more compactly, effectively avoiding paper winding.And it is much more durable.

4.Adopt imported ultrasonic paper tester device, simple operation which can keep two pieces of layered paper from entering into the machine at the same time.

5.The cardboard feeding table is controlled by linear guide line and servo motor, its location is correct and quick.

6.In the cardboard feeding table, the machine can automatically stop when lack of paper to reduce rejection rate.

7.Conveyor belt is equipped with a powerful vacuum fan to keep the paper without any movement.

8.Paper feeding and positioning system adopts imported high-precise photoelectric control device to make the paper and cardboard location more accurate.

9.The folding unit adopts servo motor, no displacement and no scratches.

10.Pneumatic pressure control for folding, concentric shaft adjustment for trimming, easy to operate;It also adopts a new technology on the folding way which solves the problem of irregular covers.

11.The whole machine adopts PLC control, featuring in simple operation.The troubles are displayed directly on the screen, which helps the operator easily remove them.

12.Low electricity consumption, low noisy and easy adjustment.
Case Making Machine Production Flow:


Case Making Machine Main Technical Parameter:

ModelQFM 460BQFM600B
Length of paper190- 830MM190- 1030MM
Width of paper100-460 MM100-630MM
Thickness of paper800-200g80-200g
Thickness of cardboard1-3mm1-3mm
Working Speed0 - 35 sheets/min.0-35 sheets/min.
DimensionL7800 *W2100*H1550mmL8900*W2250*H1550mm
Power supply12 kw13kw
Weight3500kg4500kg


Case Making Machine Details:
Advantage&Services:
1.Has several senior engineers service in many countries, all the year round with our after-sales office in multiple countries.2.Machines with good quality in one year, life-long maintenance.3.Have many machines can be monitored via the Internet, solve customer requirements in a timely manner.4.Has several senior, continuous innovation and reform, in order to ensure the quality of mechanical stability.5.Undertake various non-standard machinery, solve the customers' requirements.


About our company:ZHEJIANG XINWEI MACHINERY Co., Ltd. Is an integrated high-tech enterprise setting research and development, manufacturing, sales, service as one.From the beginning, we always adhere to the management concept of "technological innovation and development, quality of survival"and set establishing an international high standard of packaging machine manufacturing system as the mission.Always listening to the clients" voice, meeting customer expectations-oriented, and in-depth researching and development, we have won numbers of national invention patents and the latest national standards as "the national high-tech enterprise", and passed

The ISO9001:2008 and CE certificate.The face of ever-changing, increasingly fierce competition in the domestic and overseas-market, We insist that the customer service concept, the idea of full joint development.And always played a role in the command center.For the purpose of the spirit:Saving space and labor for customers and Improving economic efficiency.

Delivery&Package:Certification:Contact Information:ZHEJIANG XINWEI MACHINERY Co., Ltd.
