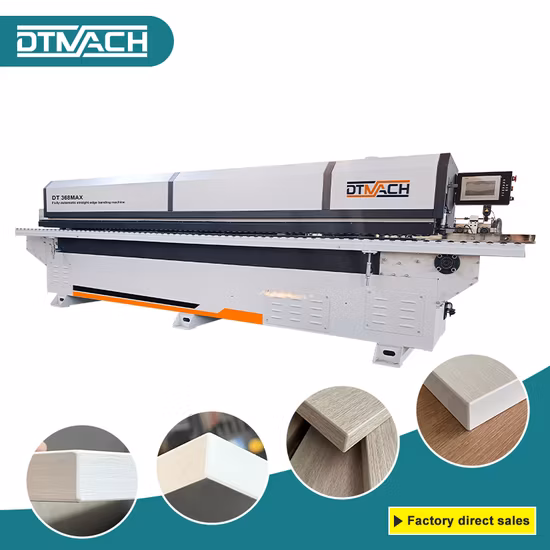

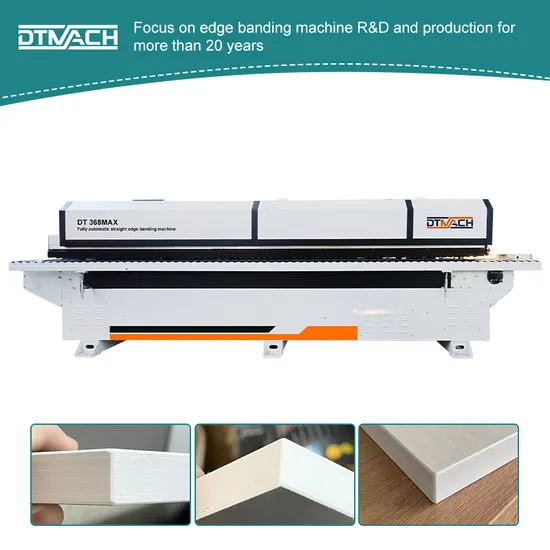

Automatic PVC Edge Banding Machine Automatic with Pre

Overview

Basic Info.

Model NO.	HH-608RLKZ
Certification	CE, ISO
Panel Thinkness	10-60mm
Min.length panel	120mm
Min.width panel	80mm
Manufacturing Principles	Glue Tank Underneath
Customized	Customized
After-sales Service	Field Installation, Commissioning and Training
Feature 4	Industrial
Feature 3	New
Feature 6	Factory Outlet
Feature 7	China Best
Feature 5	Cheap
Processing Material	Panel Wood, PVC, MDF, etc.
Feature 1	Full Automatic
Name	Single Sided Edgebander
Applicable Industries	Furniture
Transport Package	Foam Inside, Plastic Film Outside, Wooden Box Is O
Specification	11700*1100*1800mm
Trademark	HUAHUA
Origin	Guangdong, China
HS Code	846599
Production Capacity	8500

Product Description

Product Description

automatic pvc edge banding machine automatic with pre-milling full automatic edge banding machine with corner roundingFunctions

The key selling points of HUAHUA HH-608RLKZ automatic edge banding machine include: Heavy-duty steel structure integrated rail, turbine worm lifting independent, heavy-duty aluminum pressure beam, electric buffing, directional chip removal scraping.Four-channel automatic tape change and slotting optional. Multi-function edge banding machines, saving time and labor cost.Machine Details

Machine Details

Double Rails End Cutting Unit

0.37 kW (0.5 HP); 12000 rpm; saw blades Z 30 D-104 x 22 x 3.2 mm. Two motors up & down moving by sliding rails quickly cut the front and rear edge banding tape,and the two saw blades are matched before and after to achieve high precision and high efficiency.

Double Gluing Unit

The advantage of the double glue pot is that, according to different colors of panels and different colors of edge banding, we can choose different colors of glue.Solve the glue line problem.

Heavy Duty Aluminum Pressure Beam

The heightened heavy-duty pressure beam increases the stability of the whole machine during processing, and it is stable and not easily deformed in long-term use.

High Speed 4 Corner Rounding

Corner rounding unit for soft and postforming workpieces for the processing of the ends of the panel with 0.4-3.0 mm edge material and 10-40 mm workpiece height, with 4pcs 0.37kw motors. With 4pcs 6 teeth R2 cutters. ( 3mm thickness edge belt will use R3) size 68*16*16*6 teeth.

The fastest speed of corner rounding is 26m/min,can achieve 4 different profiling effects.

Direction Chip Removal Scraping

Directional air blowing and chip removal, reducing chip jamming of large and small circular disc.

More Details and Quick QuoteMachine Parameters

Machine Parameters

Panel length	≥120mm	Feed rate	20-23-26m/min
Panel width	≥80mm	Total power	31.8kw
Panel thickness	10-60mm	Working pressure	0.65mpa
Tape width	13-63mm	Size	11700*1100*1800mm
Tape thickness	0.4-3.0mm	Weight	4000kg

ApplicationApplication

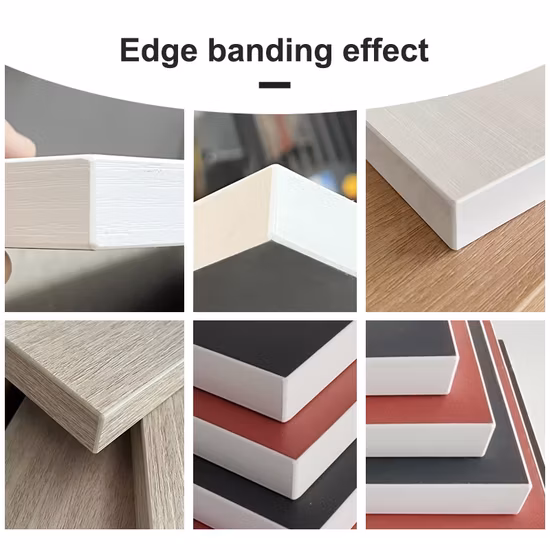

Automatic edge banding machine, meet various edge banding needs, the necessary machine for furniture, saving time, labor cost.

Customer Praise & Our ServiceCustomer Praise & Our Service

HUAHUA is a company that takes quality as the guide, professional pre-sales service and perfect after-sales service system to continue to provide customers with professional furniture production solutions.Pre-sales - Our professional sales staff will provide you with professional machine solutions and suggestions according to your needs, quick quotations, and support for teleconference and video communicationDuring machine production - We continuously update the production status and progress of the machine for our customers,Each machine has a standardized production process to ensure machine quality. After each machine is tested and passed by quality inspector, it will be cleaned and packaged and sent to the customer. Guarantee the delivery date, and deliver the machine with perfect quality within the specified timeAfter-sales - HUAHUA company can arrange engineers for overseas after-sales according to the customer need , so that customers can use HUAHUA machines good well, and customers can have higher production efficiency and better product quality. Each of our machines has a series of perfect installation videos, debugging videos, and the company has a professional after-sales engineer team to provide you with online after-sales service,and support for teleconference and video communication

Company Profile

Company Profile

Guangdong Shunde Changsheng Machinery Manufacturing Co, Ltd.is founded in 2003, located in Lunjiao Shunde Foshan Guangdong,where is the biggest woodworking machine industry area in south of China. we have 400+ employees including 50+ research staffs, 45000 m2 workshop, can produce more than 700 sets machines per month. Our brand name is HUAHUA, has been focusing on the innovation and research of the computer beam saw, cnc drilling machine, edge banding machine and cnc router machine as well as on the machines assembly and software integration, offering a solution to full range of CNC furniture equipment and automatic production line. With good innovation on technology, good management on the production and high quality in service, HUAHUA has been supplying its machines in more than 80 countries. In the future, HUAHUA will keep focusing on research, development, and manufacturing panel furniture machines, welcome more friends to know us and become partners to create a bright future with each other.

FAQ

FAQ

Q1. Are your trading company or factory?
A1. We are factory with more than 45000m² workshop located in Longwei Road, Xichong Industrial Park, Lunjiao Town, Shunde Dist., Foshan, Guangdong, China.
Q2. What machine can you supply?
A2. Our main machines are computer beam saw, edge banding machine, cnc drilling machine, cnc router machine etc.widely used for panel furniture production.
Q3. What is the payment term?
A3. T/T 30% in advance and balance before shipment, LC or by negotiation.
Q4. What is the delivery time?
A4. Normal 380V voltage is 15-30 days, other voltage is 30-45days.
Q5. What is the guarantee?
A5. 12 months for the whole machine. Within 12 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 12 months, you will get spare parts at cost price.You will also get technical support and service all the lifetime.
Q6. Can you support the pre-sales service before confirm the order?
A6. Yes ,you will get experienced pre-sales engineer to support, not only including machine and auxiliary selection but also electrical ,air, machine layout in factory ,etc.
Q7. What is the after sales services?
A7. you will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by online tools. We can also send our engineer to your factory, but need you take charge of all travelling cost and labour cost
